Stainless Steel Angle Frame Mirrors

Click to Enlarge

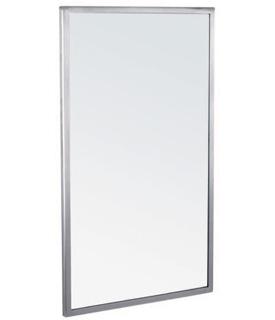

These glass mirrors are framed inside type 304 stainless steel angle and a galvanized steel back with wall hangers. The frame features a fully welded design and all exposed metal is finished to a #4 satin finish. Please browse the many available sizes below or contact us with questions or special requests.

PLEASE NOTE: All mirrors are shipped in custom built crates by the manufacturer's carriers.

*** Freight/Crating charges will be a MINIMUM of $100/order.




 *Please select the quantity for each item you wish to order and click the 'Add To Cart' button below.

Construction Features

  • Mirror Glass: #1 quality, 1/4" (6mm) plate/float glass guaranteed against silver spoilage for 25 years. Meets and exceeds federal specifications DD-M-00411B & C. S. 27.

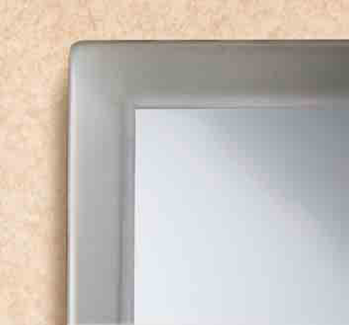

  • Frame: fabricated with one piece roll formed type 304 stainless steel angle with a fully welded design. All corners are welded and ground smooth. All exposed metal is finished to a #4 satin-finish.
  • Back Panel: Fabricated of galvanized steel with tab lock and slots formed to receive wall hanger tabs. Shock absorbing material is placed between the mirror glass and the back panel.

Installation

Surface-mounted. The angle frame mirrors install on a concealed wall hanger and lock in place. Removable with a slide key.
